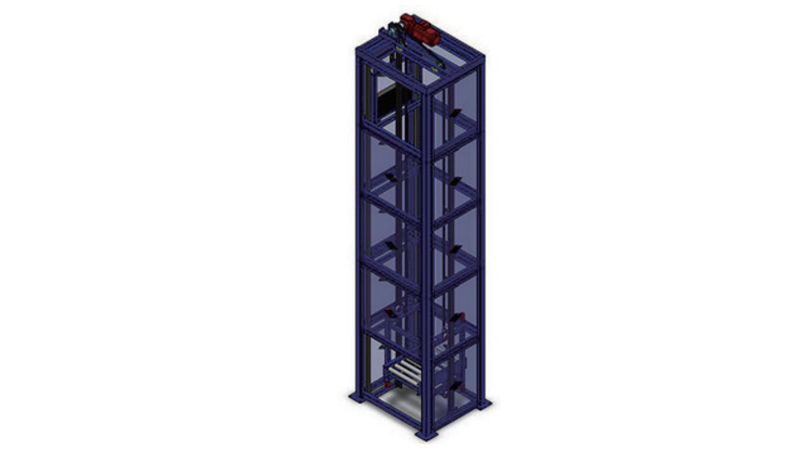

Reciprocating tray elevator

The working principle of reciprocating hoist is that the driving device drives the chain through a sprocket, and the two ends of the chain are respectively connected to the load platform and the counterweight component. The forward and reverse rotation of the motor realizes the lifting and lowering of the load platform.

Main structure and features：

Body: Made of cold-rolled steel plate.

Outer sealing frame: Steel wire mesh sealing frame is used.

Cargo platform: Made of cold-rolled steel plates and welded into a whole.

Freight conveyor: drum machine or chain machine, with the structure as described above.

Surface coating: Parts such as racks and mounting plates are rust removed by wire brushes, sandpaper, etc., acid washed to remove grease, phosphated, and then electrostatically sprayed with epoxy resin powder and baked. The resin thickness is between 60μm ~ 90μm. The spraying color shall be specified by Party A on the color card.

Purchased parts configuration: The motor adopts SEW, the chain adopts Hangzhou Donghua, the bearing seat adopts TR, and the bearing adopts Ha shaft.

Main performance and parameters

Formal description：

● Four column frame type

● Equipped with counterweight, placed on the inside of the frame

● The guide rail adopts the elevator requirements standard

● Four chain lifting, chain specification 16A-1

● The driver is placed on the top of the lifting machine

● Top safety fence

● Sealing frame: in mesh form

● Used in conjunction with roller conveyors, chain conveyors, or forks

● Chain break protection device
