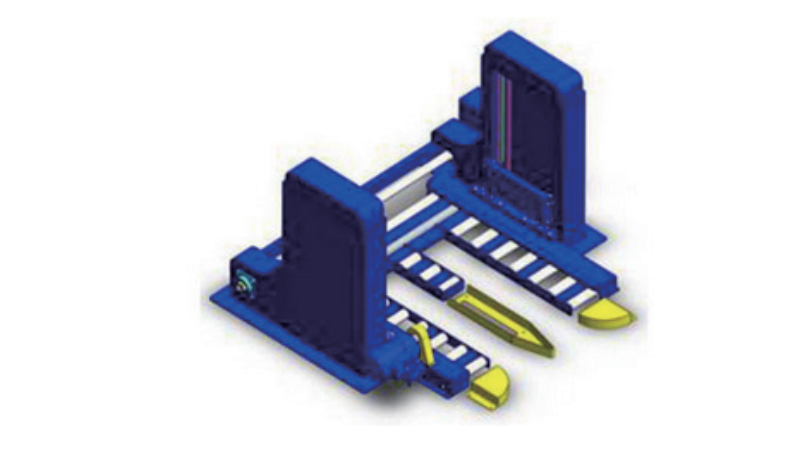

Sichuan type tray elevator

Main structure and features：

Lifting mechanism: There are four lifting chains hanging at the four corners of the cargo platform, and there are guide wheels on both sides of the cargo platform for smooth lifting. Effectively preventing the goods from tipping over due to weight or during operation.

Cargo platform: Three column roller conveyor; The roller diameter is 60mm, and the conveying surface can be lowered to a minimum distance of 80mm from the ground. This equipment can be used with hydraulic forklifts, electric forklifts, and internal combustion forklifts.

Purchased parts configuration: SEW is used for the reduction motor, Hangzhou Donghua is used for the chain, TR is used for the seat bearing, and Ha shaft is used for the bearing.

Surface coating: Parts such as racks and mounting plates are rust removed by wire brushes, sandpaper, etc., acid washed to remove grease, phosphated, and then electrostatically sprayed with epoxy resin powder and baked. The resin thickness is between 60μm~90μm.

Main performance and parameters

Formal description：

● Double chain drive drum (08B-14Z) with a diameter of 60 × 2mm

● Steel plate guidance on both sides

● Rack steel 125 × 70 × 5mm

● Roller spacing 152.4mm

● R series side mounted motor

● Chain lifting, minimum height 80mm

● Can directly connect with ground cows
