Box type rotary arm elevator

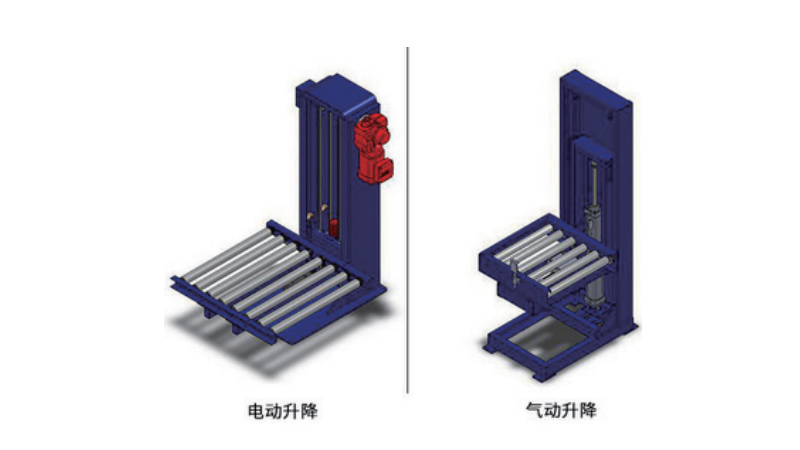

The lifting conveyor is a lifting and conveying equipment suitable for changing small height differences of bags and suitcases. There are two lifting methods: electric and pneumatic.

Main Structure and Features：

Body: Made of cold-rolled steel plate.

Cargo platform: Made of cold-rolled steel plates and welded into a whole.

Cargo conveyor: Multi belt drum machine, with the structure as described above.

Surface coating: Parts such as racks and mounting plates are rust removed by wire brushes, sandpaper, etc., acid washed to remove grease, phosphated, and then electrostatically sprayed with epoxy resin powder and baked. The resin thickness is between 60 μ m and 90 μ m. The spraying color shall be specified by Party A on the color card.

Purchased parts configuration: The motor adopts SEW/NORD, the chain adopts Hangzhou Donghua, the bearing seat adopts TR, and the bearing adopts Ha shaft.

Configuration of purchased parts: The cylinder adopts SMC/Yadeke brand cylinder.

Main performance and parameters

Formal description：

● The cargo platform is cold rolled from steel plate and welded into a whole;

● Adopt pneumatic or electric lifting form;

● Simple structure;

● Used in conjunction with rollers or belt conveyors
