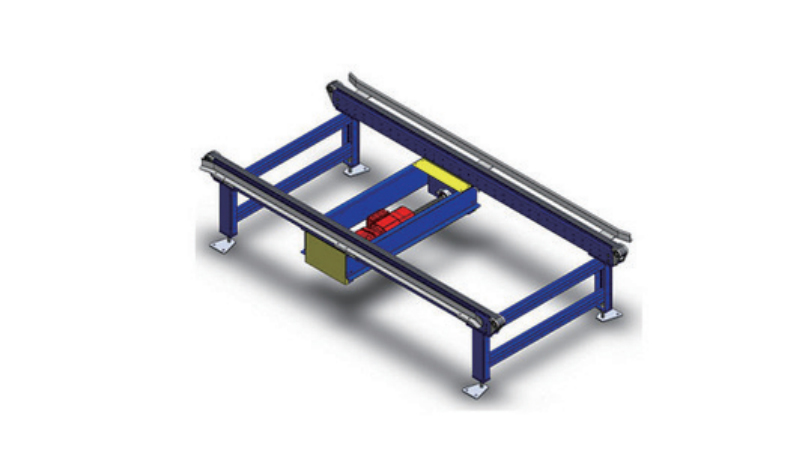

Tray chain machine

Main structure and features：

Conveyor chain: C10B-2 straight double row chain, pitch P=15.875mm.

Chain guidance: Ultra high molecular weight polyethylene (UHMW) with self-lubricating properties.

Body: The frame is made of 120x70X15X4mm carbon steel profiles, with welded legs connected to the frame bolts, M20 screw adjustment feet fixed to the ground, and the height of the conveying surface adjusted by ± 25mm.

Guided barrier: arranged according to the actual requirements of the project, the barrier can be adjusted and turned outward.

Drive device: intermediate drive form, including a reduction motor, drive shaft assembly, transmission sprocket group, and motor seat. The motor drives the drive shaft to rotate through a sprocket. It drives the C10B-2 double row conveyor chain with chain wheels at both ends of the drive shaft.

Attachment device: photoelectric bracket and end limit plate.

Surface coating: Parts such as legs, guardrails, and frames are rust removed by wire brushes, sandpaper, etc., acid washed to remove grease, phosphated, and then electrostatically sprayed with epoxy resin powder and baked. The resin thickness is between 60 μ m and 90 μ m.

Purchased parts configuration: SEW is used for the reduction motor, Hangzhou Donghua is used for the chain, TR is used for the seat bearing, and Ha shaft is used for the bearing.

Formal description：

● Two rows of conveyor chain C10B-2

● Polyethylene chain holder

● Rack steel 120 × 70 × 15 × 4mm

● Aluminum alloy headband

● R series built-in motor
