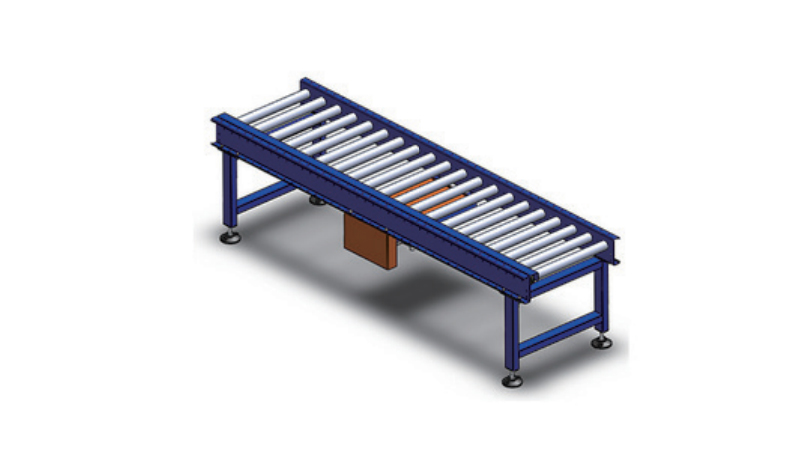

Main structure and features：

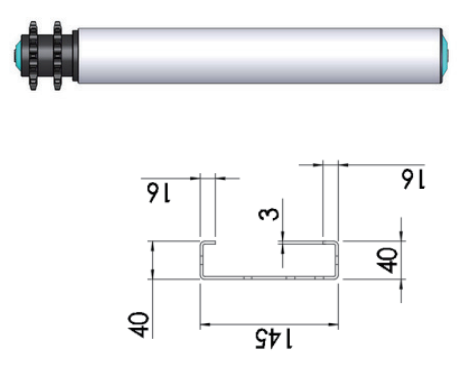

Drum: φ50*1.5mm double sprocket drum, bearings at both ends are maintenance-free deep groove ball bearings, and barrel material is carbon steel galvanized.
Frame: Laser cutting/drilling of 3mm steel plate, CNC cold rolling forming, size: 145*40* 16mm; cross-section size is as shown in the figure:

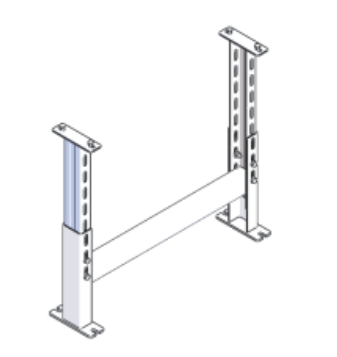

Legs: Adopt custom profile welding type, which has the advantages of firmness and good stability. Use a connecting plate to connect it with the frame with bolts, adjust the foot base to connect it with the ground, and adjust the height of the conveying surface to ±50 mm. The structure is as shown in the figure:
Drive device: SEW/NORD/JSCC motor drive.
Main performance and parameters
Formal description：
● Double sprocket roller drive/φ50×1.5mm
● Roller barrel Q235/201/304
● Drum spacing is calculated according to 08B chain pitch
● Frame steel 125×40×3mm
● SPG/SEW/NORD built-in motor
| Standard Style | |
| Standard | Description |
| L（mm） | L ≤ 4400 |
| H (mm) | H(min)≥400 |
| B (mm) | 350 ≤ B ≤ 800 |
| P (kw) | 0.032/Conveyor length L (mm) ＜ 1500 0.06 conveyor length L (mm) ＜ 2500 (empty container) 0.2/conveyor length L (mm) ≤ 3500 0.25 Conveyor length L (mm) ≤ 4400 (empty container) |
| V (m/min) | V=20 V=25 V=32 V=55 |
| Conveying capacity（Kg/m） | Max ≤150 |
| Roller spacing P (mm) | P = 12.7*n（ n ≥ 7 ） |
