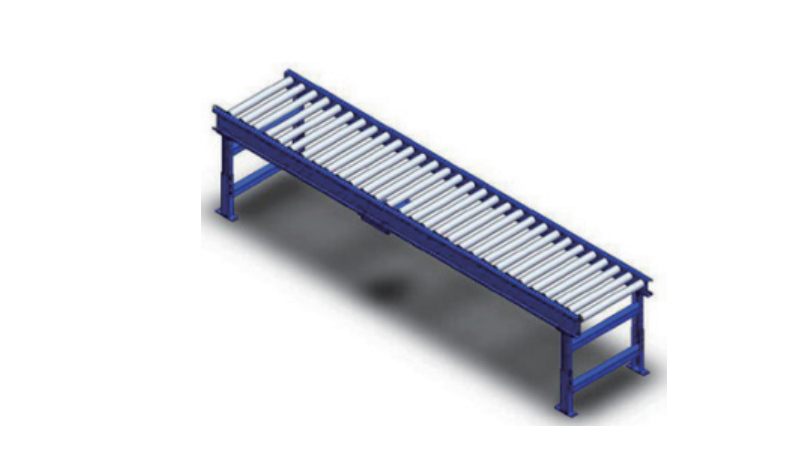

Main structure and features：
Drum：φ50*1.5mm Multi wedge belt drum, with maintenance free deep groove ball bearings at both ends, and carbon steel galvanized cylinder material.。

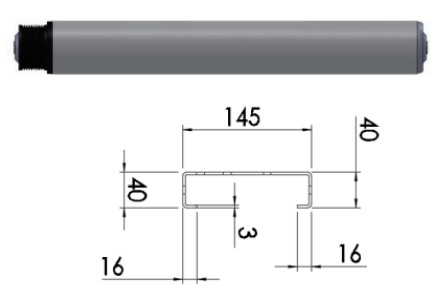

Rack: 3mm steel plate laser cutting/drilling, CNC cold rolling forming, size: 145 * 40 * 16mm; cross-sectional dimensions as shown in the figure：

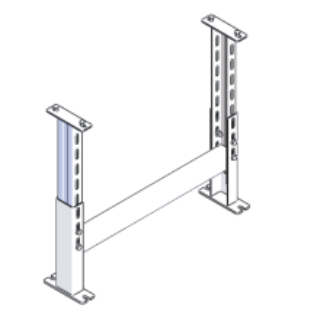

Leg: Made of customized profile welding, it has the advantages of firmness and good stability. Connect the connecting plate to the frame bolt, adjust the foot base to connect with the ground, and adjust the height of the conveying surface by ± 50mm. The structure is shown in the figure:
Drive device: motor/electric drum drive.
Surface coating: Components such as frames, legs, guides, accessories, etc. are first derusted with wire brushes, sandpaper, etc., and then acid washed to remove grease. After phosphating, the surface is electrostatically sprayed with epoxy resin powder and baked. The spraying color shall be specified by Party A on the color card.
Purchased parts configuration: The non powered drum adopts Interno/Dema/central axis, the motor adopts SPG/JSCC, the electric drum adopts Interno/Dema, and the multi wedge belt adopts Hutchinson.
Main performance and parameters
Formal description：
● Multi wedge belt roller drive / φ50×1.5mm
● Drum body Q235/201/304
● Roller spacing 75/80/100/120
● Rack steel 125×40×3mm
● Built in electric drum/SPG built-in motor
| Standard Style | |
| Standard | Description |
| L（mm） | L ≤ 4400 (max 36 rollers) |
| H (mm) | H(min)≥250 |
| B (mm) | 350 ≤ B ≤ 800 |
| P (kw) | 0.032/Conveyor length L (mm) ＜ 1500 0.06 conveyor length L (mm) ＜ 2500 (empty container) 0.2/conveyor length L (mm) ≤ 3500 0.25 Conveyor length L (mm) ≤ 4400 (empty container) |
| V (m/min) | V=20 V=25 V=32 V=55 |
| Whole machine load-bearing capacity (Kg) | Max ≤200 |
| Conveying capacity（Kg/m） | Max ≤50 |
| Roller spacing P (mm) | P＜1/3L(L is the length of the conveyed material) |
