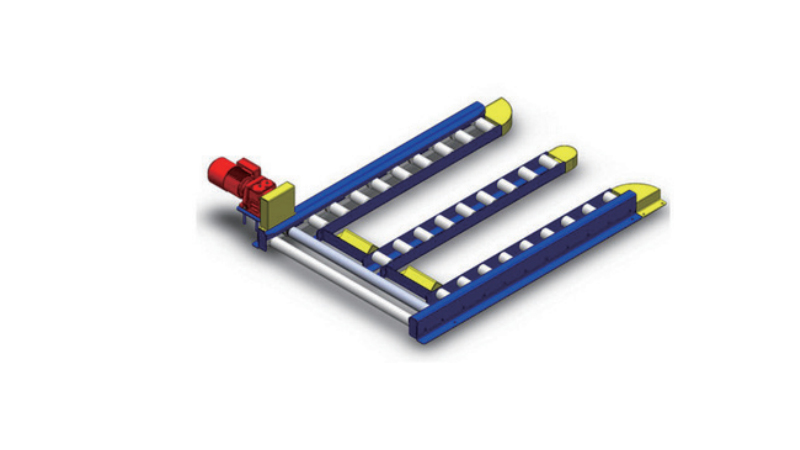

Sichuan type drum conveyor

Main structure and features：

Roller: A single side double chain galvanized roller with a diameter of 60, with a precision rolled and welded tube body. The single-sided double sprocket is 08B-14T, and the bearings at both ends of the roller are maintenance free deep groove ball bearings.

Body: The frame is made of cold-formed steel. The rack is fixed to the ground with expansion bolts.

Guiding guardrail: made of 4mm cold-formed steel, fixed to the frame with bolts.

Drive chain: Adopting precision roller chain 08B-1 that complies with GB1243 standard.

Drive device: The deceleration motor is installed on the bracket on the side of the frame. It includes a base type motor with a drive sprocket. The chain connects the motor sprocket and adjacent two roller sprockets, and then the roller sprockets are sequentially connected to other driving rollers through a closed circular chain.

Protective cover: Closed protective cover for roller chain drive and motor chain drive parts.

Attachment device: photoelectric bracket.

Surface coating: Parts such as racks, legs, and photoelectric bracket mounting plates are rust removed by wire brushing, sandpaper, acid washing, and degreasing. After phosphating, the surface is electrostatically sprayed with epoxy resin powder and baked. Fasteners with resin thickness between 60μ m and 90 μ m.

Purchased parts configuration: SEW is used for the reduction motor, and Hangzhou Donghua is used for the chain.

Main performance and parameters

Formal description：

● Double chain drive drum（08B-14Z）Φ60×2mm

● Steel plate guidance on both sides

● Rack steel 125×70×5mm

● Roller spacing 152.4mm

● R series side mounted motor
