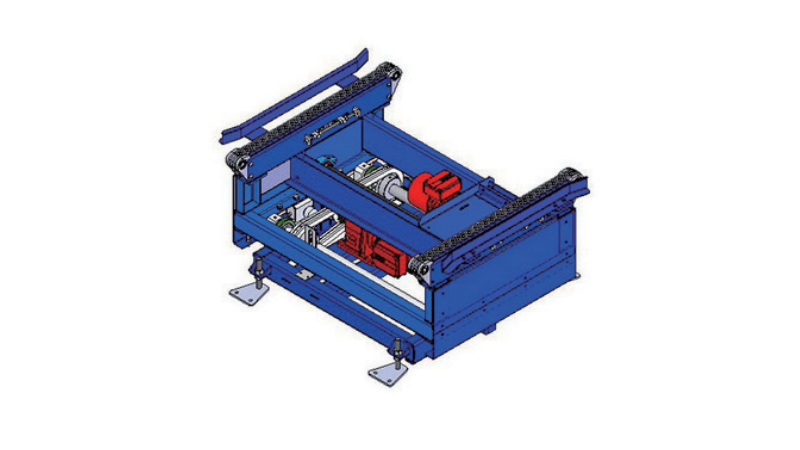

Tray chain lifting and transfer machine

Main structure and features：

Lifting mechanism: a welded bottom frame with height adjustment feet, a base type reduction motor is placed in the middle of the bottom frame, and two shafts are connected to the bottom frame by bearing seats on both sides. The two shafts are connected to the motor through a transmission chain. Each shaft and both ends are equipped with needle roller bearings and curved arms to form a lifting structure. The four corners of the lifting frame are evenly stressed, and the lifting is smooth.

Transfer mechanism: using a pallet chain machine, with the specific structure as described above.

Attachment device: photoelectric bracket (with two lifting positions and in place detection).

Purchased parts configuration: SEW is used for the reduction motor, Hangzhou Donghua is used for the chain, TR is used for the seat bearing, and Ha shaft is used for the bearing.

Surface coating: Parts such as racks and photoelectric bracket mounting plates are rust removed by wire brushes, sandpaper, etc., acid washed to remove grease, phosphated, and then electrostatically sprayed with epoxy resin powder on the surface and baked. The resin thickness is between 60 μm~90μm.

Formal description：

● Two rows of conveyor chain C10B-2

● Polyethylene chain holder

● Rack steel 120 × 70 × 15 × 4mm

● R series built-in motor

● Cam lift, travel 70mm

● Equipment type: Intermediate type
